IRONRIDGE SOLAR ROOF MOUNTS



                                    BX Ballasted for Flat Roofs

Uniquely shaped for flat roofs

IronRidge BX delivers superior power density and design flexibility to flat roof solar arrays.

Made of a glass reinforced composite, the BX Chassis is engineered for extreme structural loading, yet is also shaped to be roof-friendly and easy to install.



Glass-Reinforced Composite
Corrosion-free and engineered for long-term structural performance.

UL 2703 Listed System
Entire system and components meet newest effective UL 2703 standard.

Commercial Services
Engineering support to optimize system design.

Class A Fire Rating
Certified to maintain the fire resistance rating of the existing roof.

25-Year Warranty
Products guaranteed to be free of impairing defects.

Design Assistant
Online software makes it simple to create, share, and price projects.





    BX Chassis

  5° CHASSIS



Strong, light, and ready for anything

The IronRidge BX System is designed to meet the needs of commercial solar—navigating complex roof layouts, while also handling the most extreme environmental conditions. At the core of the BX system is the Chassis, a ballasted mount made of BASF Ultramid. Ultramid polyamides are exceptional for their high mechanical strength, rigidity and thermal stability.

Moreover, Ultramid polyamides afford good impact resistance even at low temperatures as well as UV protections for long life. Chassis come in 5° and 10° options and are backed by IronRidge’s 25-year warranty.0



     BX Chassis

    10° CHASSIS



Strong, light, and ready for anything

The IronRidge BX System is designed to meet the needs of commercial solar—navigating complex roof layouts, while also handling the most extreme environmental conditions. At the core of the BX system is the Chassis, a ballasted mount made of BASF Ultramid. Ultramid polyamides are exceptional for their high mechanical strength, rigidity and thermal stability.

Moreover, Ultramid polyamides afford good impact resistance even at low temperatures as well as UV protections for long life. Chassis come in 5° and 10° options and are backed by IronRidge’s 25-year warranty.



TOP CLAMPS

                                Top Clamps







Combines with Bottom Clamp for top-bottom module grip.

  • Secures above module
  • One-tool attachment
  • Mill aluminum 600 series

  BOTTOM CLAMPS

                          Bottom Clamps







Combines with Top Clamp to up structural connection.

  • Secures below module
  • One-tool attachment
  • Mill aluminum 600 series

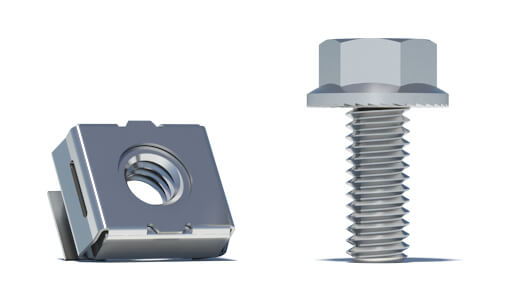

 MLPE MOUNTING HARDWARE

                                 MLPE Kit





Optional mounting hardware for MLPE devices.

  • Cap screw and cage nut
  • 5/16″ socket install
  • Stainless steel 300 series

PV MODULE GROUNDING LUG

                           Grounding Lug







Connect arrays to equipment ground.

  • Low profile
  • Mounts to module frame
  • One per continuous array

8″ MODULE BONDING JUMPER

                              8" Bonding Jumper







Bond adjacent module in the array

  • Press-on installation
  • Tin-plate copper wire
  • Factory crimped connection

38" ROW BONDING JUMPER

                          38" Bonding Jumper





Complete row-to-row bonding in the array.

  • Press-on installation
  • Tin-plate copper wire
  • Factory crimped connection

38" ROW BONDING JUMPER

                             38" Bonding Jumper

Complete row-to-row bonding in the array.

  • Press-on installation
  • Tin-plate copper wire
  • Factory crimped connection

CFABLE TIE

                              Cable Tie





Complete wire management with weatherproof ties.

  • UV stabilized polyamide
  • 12″ length, bundle of 100
  • Black finish

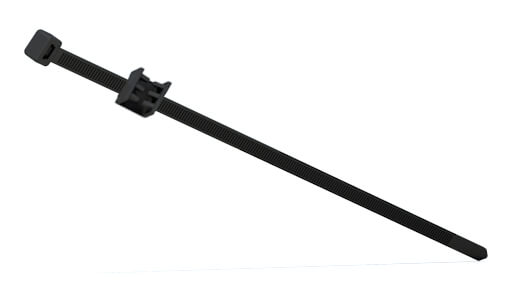

EDGE CLIP CABLE TIE

                        Edge Clip Cable Tie





Manage wires underneath module and Chassis flange.

  • Clips to module and Chassis
  • UV stabilized polyamide
  • Black finish

STRING INVERTER MOUNTING KIT

                     String Inverter Mounting Kit







Create mounting platform for inverters.

  • Chassis, XR10 Rail, and hardware
  • Supports up to 4′ inverter base
  • Raises inverter off the deck

 FLAT ROOF ATTACHMENT KIT

                         Flat Roof Attachment Kit







Add anchors to the ballasted system.

  • Includes hardware
  • For ballast-attached hybrids
  • Uses locally-sourced strut

Engineering Down to the deck

Low-slope roofs (0-6°) are extremely common in residential and commercial buildings, but the roof construction and the structural system below vary significantly, creating a challenge for designing solar arrays.

The IronRidge Flat Roof Attachment combines a high-strength cast aluminum base with a 16-point fastening pattern to enable the widest range of design options on low-sloped roofs. Compatible with most common roofing materials to ensure a system that is easy to integrate down to the deck.

                               BUILT-IN WATERPROOFING



Sealed from above with a “blind hole” and pre-installed sealing washing, the Flat Roof Attachment delivers integrated waterproofing with popular roofing systems.

                        HIGH-STRENGTH ALUMINUM BASE



Made from high-strength cast aluminum, the 7″ wide, heavy-duty base delivers superior uplift and lateral capacity compared to any other product on the market.

                 16-POINT FASTENING PATTERN



12-straight and 4-angled fastening options provide maximum capacity and versatility with wood, steel, decks, beams, and even concrete slabs.

                 COMPATIBLE ROOF MEMBRANES



Formed membrane covers are matched to major roofing brands to ensure a tested, engineered system for TPO, PVC, and KEE roofs. No additional sealant necessary.

                  Structural Selection

                 Flashing Membranes
